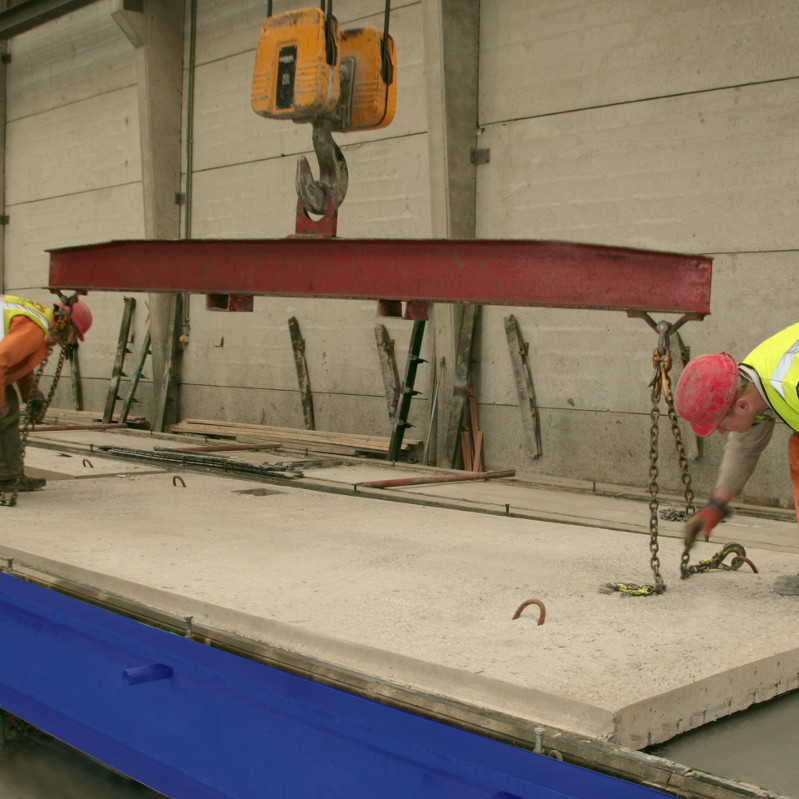

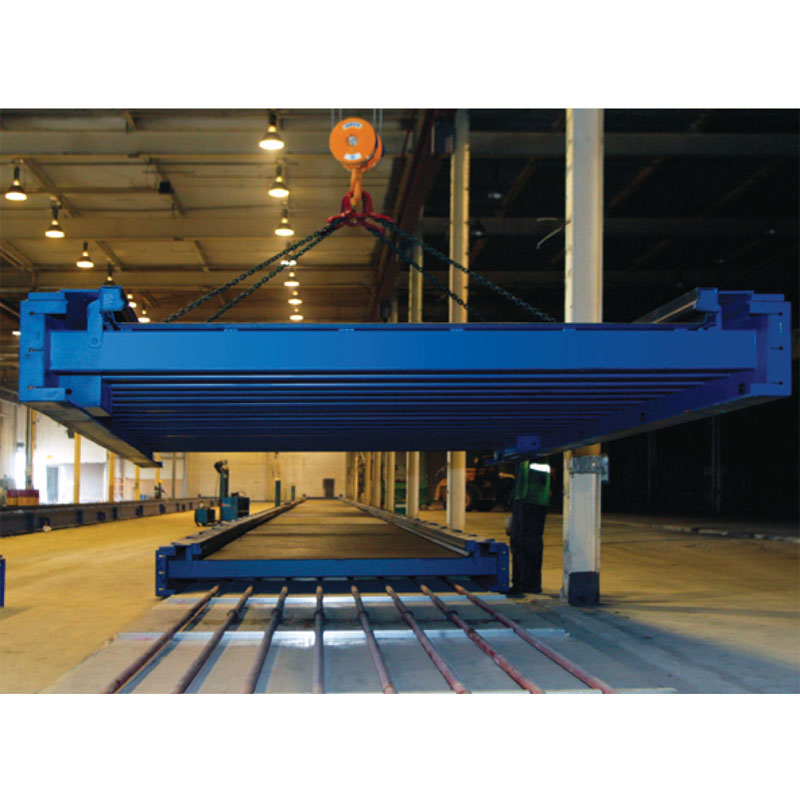

Pre-stressed Flooring Beds

Features
Self Stressing unit no need for buried anchored ends.
Modular sections means bed lenght can vary.
Wet Cast concrete means suttered points can be added into panels.
Special concrete cutting equipment is not needed.
Panel ends do not need to be plugged like hollowcore panels.

Optional Extras
Heating Pipes
Multi-wire tentioning / de-tentioning
Built in Bed Vibration

STAND TYPE	MU KNM	VCO KN	4.0	4.5	5.0	5.5	6.0	6.5	7.0	7.5	8.0	CODE
5-9.3Ø	44.92	96.83	9.74	7.19	5.37	4.02	3.00	2.20				A
6-9.3Ø	52.90	102.78	11.17	8.30	6.27	4.76	3.62	2.73				B
7-9.3Ø	60.64	105.90		9.44	7.20	5.53	4.26	3.28	2.51	1.86		C
8-9.3Ø	68.00	110.17		10.11	7.67	5.92	4.59	3.56	2.73			D
9-9.3Ø	75.06	114.37			9.03	7.04	5.53	4.36	3.45	2.68	2.06	E
10-9.3Ø	81.78	118.33		12.82	9.93	7.79	6.16	4.90	3.90	3.90	2.42	F

STAND
TYPE

MU
KNM

VCO
KN

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

CODE

5-9.3Ø

44.92

96.83

9.74

7.19

5.37

4.02

3.00

2.20

6-9.3Ø

52.90

102.78

11.17

8.30

6.27

4.76

3.62

2.73

7-9.3Ø

60.64

105.90

9.44

7.20

5.53

4.26

3.28

2.51

1.86

8-9.3Ø

68.00

110.17

10.11

7.67

5.92

4.59

3.56

2.73

9-9.3Ø

75.06

114.37

9.03

7.04

5.53

4.36

3.45

2.68

2.06

10-9.3Ø

81.78

118.33

12.82

9.93

7.79

6.16

4.90

3.90

2.42

STAND TYPE	MU KNM	VCO KN	5.0	5.5	6.0	6.5	7.0	7.5	8.0	8.5	9.0	9.5	10.0	CODE
5-9.3Ø	65.26	124.02	9.34	7.23	5.63	4.37	3.39	2.60						A
6-9.3Ø	77.35	129.44	10.14	8.35	6.57	5.18	4.08	3.20	2.47					B
7-9.3Ø	89.11	134.80	12.09	9.49	7.53	6.00	4.78	3.81	3.01	2.35				C
8-9.3Ø	100.55	139.80	13.42	10.61	8.47	6.80	5.47	4.41	3.54	2.82	2.21			D
9-9.3Ø	111.67	144.76			9.42	7.62	6.18	5.82	4.08	3.29	2.63	2.08		E
10-9.3Ø	112.46	419.42			10.36	8.42	6.87	5.62	4.61	3.76	3.05	2.45	1.94	F

STAND
TYPE

MU
KNM

VCO
KN

5.0

5.5

6.0

6.5

7.0

7.5

8.0

8.5

9.0

9.5

10.0

CODE

5-9.3Ø

65.26

124.02

9.34

7.23

5.63

4.37

3.39

2.60

6-9.3Ø

77.35

129.44

10.14

8.35

6.57

5.18

4.08

3.20

2.47

7-9.3Ø

89.11

134.80

12.09

9.49

7.53

6.00

4.78

3.81

3.01

2.35

8-9.3Ø

100.55

139.80

13.42

10.61

8.47

6.80

5.47

4.41

3.54

2.82

2.21

9-9.3Ø

111.67

144.76

9.42

7.62

6.18

5.82

4.08

3.29

2.63

2.08

10-9.3Ø

112.46

419.42

10.36

8.42

6.87

5.62

4.61

3.76

3.05

2.45

1.94

STAND TYPE	MU KNM	VCO KN	6.0	6.5	7.0	7.5	8.0	8.5	9.0	9.5	10.0	10.5	11.0	11.5	12.0	CODE
5-9.3Ø	101.7	172.81	10.07	8.11	6.53	5.27	4.24	3.37	2.65	2.05	1.53					A
6-9.3Ø	133.6	185.54		10.20	8.33	6.84	5.62	4.95	3.74	3.03	2.41	1.88				B
7-9.3Ø	164.4	197.24			10.16	8.43	7.01	5.83	4.85	4.02	3.31	2.70	2.16	1.70		C
8-9.3Ø	173.1	199.74			10.69	8.90	7.42	6.19	5.17	4.31	3.57	2.93	1.89			D
9-9.3Ø	224.4	219.66				11.70	9.88	8.37	7.12	6.05	5.14	4.35	3.68	3.09	2.57	E
10-9.3Ø	272.5	236.76					12.34	10.55	9.05	7.79	6.71	5.78	4.97	4.27	3.66	F

STAND
TYPE

MU
KNM

VCO
KN

6.0

6.5

7.0

7.5

8.0

8.5

9.0

9.5

10.0

10.5

11.0

11.5

12.0

CODE

5-9.3Ø

101.7

172.81

10.07

8.11

6.53

5.27

4.24

3.37

2.65

2.05

1.53

6-9.3Ø

133.6

185.54

10.20

8.33

6.84

5.62

4.95

3.74

3.03

2.41

1.88

7-9.3Ø

164.4

197.24

10.16

8.43

7.01

5.83

4.85

4.02

3.31

2.70

2.16

1.70

8-9.3Ø

173.1

199.74

10.69

8.90

7.42

6.19

5.17

4.31

3.57

2.93

1.89

9-9.3Ø

224.4

219.66

11.70

9.88

8.37

7.12

6.05

5.14

4.35

3.68

3.09

2.57

10-9.3Ø

272.5

236.76

12.34

10.55

9.05

7.79

6.71

5.78

4.97

4.27

3.66

	5.0	6.0	7.0	8.0	9.0	CODE
150MM 20no 9.3 mm STAND	19	11	6	2.5	0.5	A

5.0

6.0

7.0

8.0

9.0

CODE

150MM 20no
9.3 mm STAND

2.5

0.5

Pre-stressed Flooring Beds

Features

Optional Extras

Video

Flooring Slab 1200mm x 150mm

Flooring Slab 1200mm x 200mm

Flooring Slab 1200mm x 250mm

Solid flooring Slab 2400mm x 150mm
